A yo-yo is a string, an axle, and two discs. It is also a working lesson in energy, rotation, friction, materials, and manufacturing. This page walks through how yo-yos work, how they are designed and made, and how you can print your own at a library near you. Every fact links to a numbered source, so students can check it and cite it.

MAKE YOUR OWN → WHERE TO PRINT → FOR CLASSROOMS →
  1. Anatomy of a Yo-Yo
  2. The Physics and Math
  3. Design Principles
  4. How Yo-Yos Are Made
  5. Patents and Trademarks
  6. Research Papers and Lab Experiments
  7. Yo-Yos in Space Engineering
  8. Make Your Own
  9. Where to Print in DC and NoVA
  10. Easy Experiments to Try
  11. For Classrooms and Reports
  12. Explore Related Topics
  13. References
Part 1

Anatomy of a Yo-Yo

Every yo-yo has the same core parts: two halves (discs), an axle that joins them, a gap between them where the string rides, and the string.[5][1]

  • The slip string. Before Pedro Flores, strings were tied to the axle, so a yo-yo could only go up and down. Flores looped a twisted string around the axle instead, which lets the yo-yo spin freely at the bottom, or “sleep.”[5][6]
  • The axle. Old yo-yos were carved from one block of wood, axle included. Wood gives good friction but the string eventually cuts it, so most modern axles are aluminum or steel.[5]

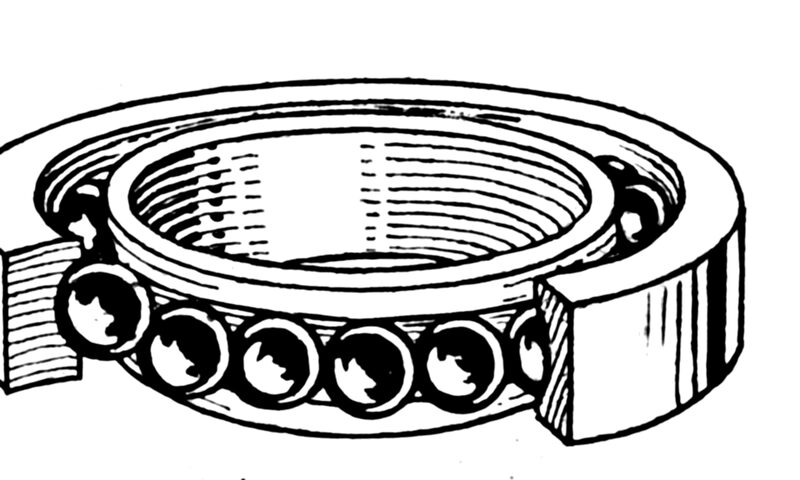

  • The bearing. Ball bearings arrived in yo-yos in the early 1990s to cut friction while the yo-yo sleeps. A bearing has an outer race, an inner race, and balls that roll between them.[13][6]
  • The response system. Pads or other friction surfaces in the gap let the string grab so the yo-yo comes back. On modern yo-yos you “bind” to return it.[17][6]

A classic plastic yo-yo is about 1¾ ounces (49 g) and about 2⅝ inches (6.67 cm) across. Manufacturers usually differ by only a sixteenth of an inch or a sixteenth of an ounce.[5]

Part 2

The Physics and Math

Energy: falling turns into spinning

A yo-yo in your hand has two kinds of stored (potential) energy: the potential to fall, and, because the string is wound on the axle, the potential to spin. When you throw it, that stored energy becomes kinetic energy, the energy of motion.[1] A spinning yo-yo actually carries two kinds of kinetic energy at once: moving up or down, and spinning.[4]

M g h = ½ M v2 + ½ I ω2

v = ω r

v2 = 2 g h / (1 + I / M r2)

M mass · g gravity · h drop height · v speed · I moment of inertia · ω spin rate · r axle radius

Equations from UC Santa Barbara’s physics lecture demonstration.[2]

Read the last line this way: the bigger the moment of inertia I is compared with M r2, the slower the yo-yo drops, and the more of its energy goes into spin instead of speed. Because the string unwinds from a thin axle, r is small, so a yo-yo falls far more slowly than a dropped ball.[2][3]

The numbers are striking. In UCSB’s demonstration, a large brass yo-yo rolling down a ramp on its thin spindle had about 0.04 joules of energy in forward motion but about 2.94 joules in rotation.[2]

Moment of inertia and rim weight

Moment of inertia measures how hard it is to change an object’s spin. For a uniform disc it is I = ½ M R2, where R is the disc’s radius.[2][7] Moving mass outward raises it. That is why a bicycle wheel spins long and steady, and why yo-yo makers push weight to the outer edge, or rim.[5] More rim weight helps a yo-yo keep its spin and resist tipping over (precession).[11]

Angular momentum and sleeping

As the string unwinds, it puts torque on the axle, building angular momentum. At the bottom, the yo-yo cannot fall farther, but it keeps spinning because its angular momentum stays constant. That is the “sleep.” A spinning yo-yo resists changes to its axis, which is called gyroscopic stability.[1][8]

Friction is what finally stops it. It comes from the string rubbing the inside walls and the axle.[5][1] A tug adds energy back: pulling the string makes it grab the axle and wind up again, which is why you can keep a yo-yo going as long as you keep tugging.[4][1]

Friction trade-offs

  • A thinner axle means less friction and longer spins, but too thin and the yo-yo will not come back.[5]
  • A wider gap means less string rubbing and longer spins, but some rubbing is what makes a classic yo-yo spin and return. Thicker or thinner string acts like a narrower or wider gap.[5]
  • String twist keeps the loop from letting go, but too much twist grabs the axle and stops the sleep.[5]
  • Ball bearings cut friction. A cheap fixed-axle yo-yo spins 10 to 20 seconds; a good bearing yo-yo can spin 1 to 4 minutes.[6]
  • Some yo-yos use a centrifugal clutch: spring-loaded weights clamp the axle when the yo-yo spins slowly, then fly outward when it spins fast, letting it sleep, and clamp again to bring it back.[4][22]

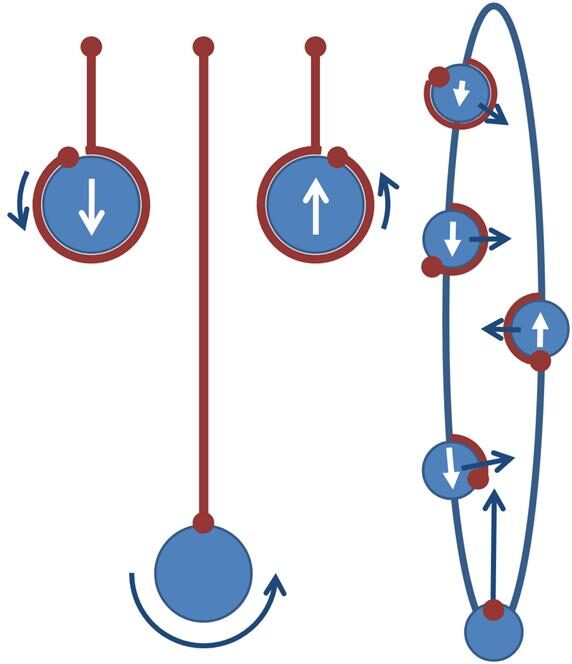

How a yo-yo climbs back up

The return is not really about the tug. It is the split second of slack right after it. During that moment the string wraps around the axle two or three times until it wedges between the halves. From then on, the yo-yo’s spin turns into motion up the string. That is why a yo-yo spinning too slowly will not come back.[51]

Something has to grab the string during that slack moment. On a fixed axle, the axle itself does it. Plastic yo-yos add a starburst, a raised star shape around the axle, first proposed by a Duncan employee around 1950. Later designs cut grooves into the walls (reverse starbursts) or use rubber or silicone pads.[51] On unresponsive yo-yos, you wrap extra string into the gap yourself. That is a bind.[51][6]

Rim weight: it’s the distance from the axle

What raises the moment of inertia is mass far from the axle, not mass far from the gap. A wide yo-yo does not automatically spin longer.[57] Compare two yo-yos that are the same except for rim weight: the more rim-weighted one starts at a lower spin rate but spins longer.[58] Weight near the hub does the opposite: it makes speed changes easier, which helps looping.[52][53]

Radius of gyration

Engineers often describe how mass is spread with the radius of gyration: the distance from the axis where all the mass could sit and give the same moment of inertia.[81] Engineer Don Watson, who helped develop Tom Kuhn’s early ball-bearing yo-yos, wrote five Yo-Yo Physics pamphlets covering string friction, wobble, and a “yo-yo constant” linking spin speed to radius of gyration. They are free to read online.[55][56]

Try This: The Spool Puzzle

Set a yo-yo or big spool on a table with the string coming off the bottom of the axle. Pull the string gently and level with the table. Does it roll toward you or away? Most people guess wrong. Physics teacher Paul Hewitt explains why torque, not just force, decides.[65] Physicist Julius Sumner Miller’s classic TV lesson on rolling things includes a yo-yo.[60]

Go deeper: rolling-motion derivations in the free LibreTexts university physics text.[3]

Part 3

Design Principles

Designing a yo-yo means trading off spin time, stability, return, and feel.[5] These are the main choices.

Shape

  • Imperial (classic): narrow, with a thin string gap. Used today for old-school and looping tricks.[15][10]

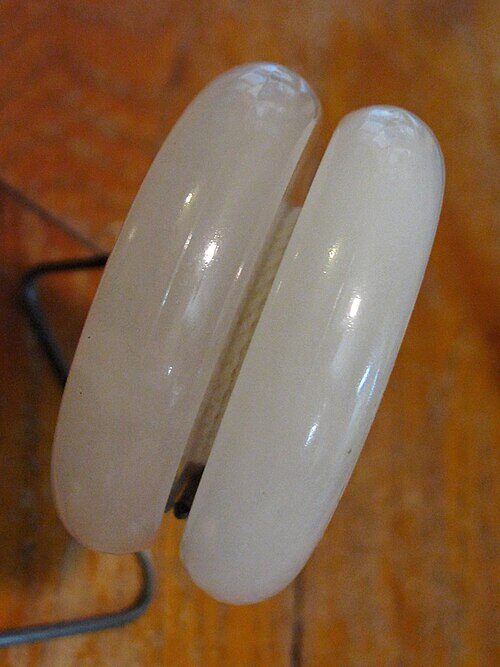

  • Modified: narrow and rounded; the most popular shape for two-handed looping (2A).[10]

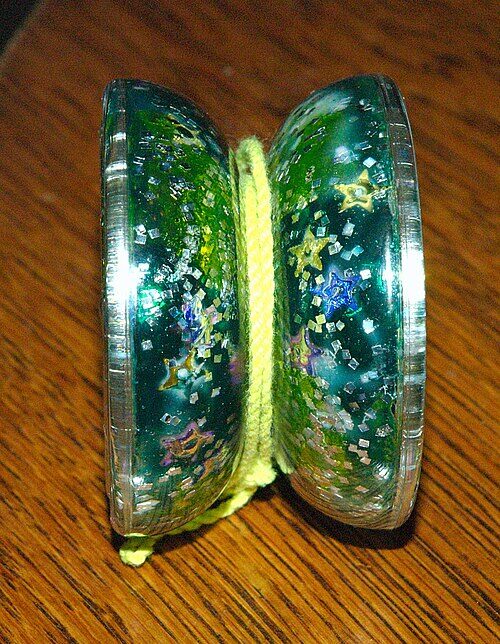

  • Butterfly: a very wide gap for string tricks, but it usually loops poorly. Favored for 1A, 3A, 4A and 5A.[10]
  • H-shape: mass concentrated at the rims so the profile looks like an H. It has more rim weight than other shapes and is very stable.[10][11][15]
  • Rim and wall details matter too. Straight or stepped walls keep the string from rubbing the yo-yo and losing spin.[16]

The letter shapes: V, W, H, and O

Modern players describe most butterfly yo-yos with four letters, each named for what the profile looks like when you cut the yo-yo in half and look at it edge-on.[121][122] One Drop’s Benchmark line made the letters famous: the same yo-yo, at the same weight and size, sold in several profiles so players could feel the difference. The 2013 set came as V, O, and H; its “V” was really a stepped shape, so the 2014 set renamed it W and added a true straight V.[120][122]

The four common profiles[121][122][123]
ShapeLooks likeHow it tends to play
V (straight)A funnel: straight walls from the gap to the rimBig catch zone, fast and easy to land; spins may be less powerful[121][122][123]
HA steep extra cut in the middle of each half, pushing mass to the rimsThe most rim weight, so the longest, most stable spins, but less maneuverable[121][122][11]
W (stepped)A hybrid of V and H: a straight wall that steps out to a heavy rimStrong spin with some center weight left for control; large catch zone[121][122]
O (organic)A dome: put the two rims together and you get an OVaries the most from design to design; often a smaller gap and high walls that bind easily and suit regens, comfortable in the hand, but harder to land on the string[121][124]
  • Other labels you’ll see: U-shape (inverse round), Z-shape, flat rim (like the Edge or Küntosh), and bell or “Orca” shapes.[125]
  • Do organics perform worse? Players disagree. One argument: high walls add inertia with less material, but also cost stability. Another: some makers skip organics because they chase competition performance, while others build them for players who want the old-school feel.[126]
  • Try it yourself: the Benchmark sets are the cleanest way to compare shapes, since everything else stays the same. They were never re-run, so look for them used.[122]

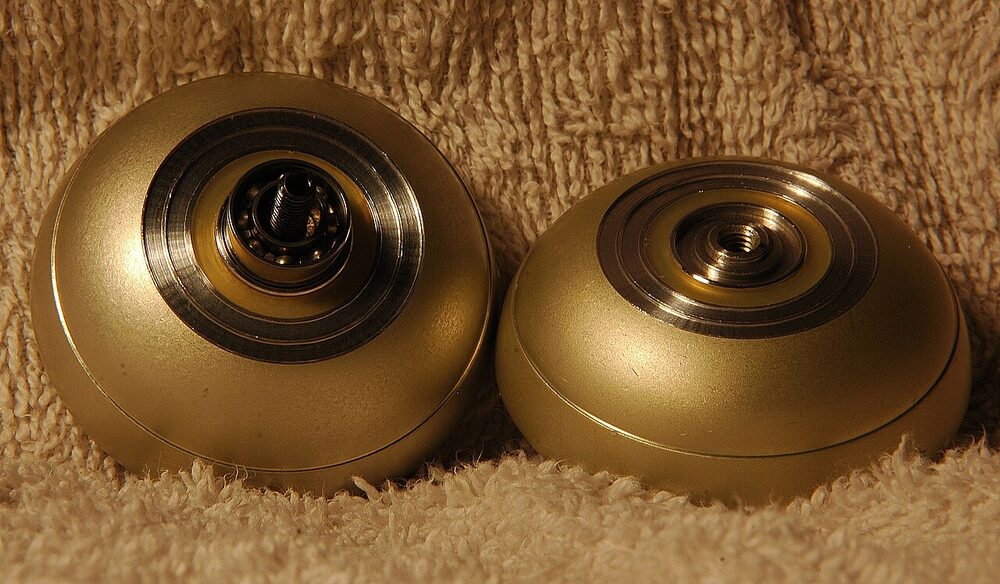

Bearings

Common yo-yo bearing sizes (inner diameter × outer diameter × width)[14]
SizeDimensionsNotes
A5 × 10 × 4 mmSmaller bearing, used in many Duncan and other yo-yos
C¼″ × ½″ × ⅜″ (.250 × .500 × .187 in)The main size for competition yo-yos, and the usual choice for DIY builds
D5 × 11 × 5 mmSome older SPYY and HSpin yo-yos

Thick lubricant in a bearing makes a yo-yo more responsive for looping. A clean or thinly lubricated “dry” bearing is less responsive for string tricks.[13]

Materials

Yo-yo body materials and trade-offs[12][5]
MaterialStrengthsDrawbacks
Wood (usually maple)Easy to turn on a lathe; maple has even densityDensity can vary, causing wobble; too light for modern shapes
Plastic (polycarbonate, ABS, Delrin/POM)Cheap; molds into almost any shape; takes colorMolding can leave sharp edges or trapped bubbles
Aluminum (6061, 7075)Denser than plastic; smooth; anodizes in many colors; 7075 resists dingsCosts more; dings and scratches; can “ring”
TitaniumStrong and scratch-resistant; allows more rim weightMuch more expensive and harder to machine
Bimetal (aluminum body, steel or brass rims)Puts dense metal at the rim for more spinMore parts and cost

Rare and odd materials: non-standard but interesting

  • Magnesium: strong, light, and precise to machine, but pricey and flammable as a powder. The Duncan Freehand Mg was the first magnesium yo-yo, followed by the General Yo Magnum.[12]
  • Heavy Gravity: YoYoJam’s plastic saturated with metal powder, which gave cheap molded rim weight. Rising costs ended it after the K-OS Extreme.[12]
  • Teflon (PTFE): the G Squared Ghost was machined from it, then discontinued partly because the hub was hard to mount securely.[12]
  • Delrin/POM: a machinable, ding-resistant plastic first developed as a metal substitute. Eric Wolff’s Alchemy Silk and Paul Yath’s Born Crucial Milk are machined from it.[12]
  • Steel and brass: too heavy for full-size yo-yos, so they show up in minis like the Mighty Flea and in bimetal rims.[12]
  • Titanium quirks: it sparks when you walk the dog on concrete, anodizes in fewer colors than aluminum, and tradition says a titanium yo-yo gets “Ti” in its name. Never put a titanium axle in a titanium yo-yo; the two can fuse together.[12]
  • Corian: countertop material, used only for prototypes and one-offs.[12]
  • Plastic tricks: “Sprite” bubbles come from adding a powder such as baking soda during molding; “Enyo” is polycarbonate with holographic foil flecks. Keep solvents away from polycarbonate, which can craze, yellow, and turn brittle.[12]
  • Rainbow wood: dyed plywood (“Spectraply”) was pioneered by Hummingbird and is used today by makers like TMBR and Spinworthy.[12]
  • Unusual bimetals: titanium with steel rims, Delrin with titanium rims, and 7068 aluminum with steel and cobalt-chrome rings.[12]

For every bearing size, pad, and string material, including the niche ones, see the Gear & Maintenance guide.

String

Yo-yo string is one long strand, looped around the axle and twisted back up to the finger. Cotton is traditional. Cotton-blend and synthetic strings such as rayon and nylon last longer and feel smoother, and string thickness changes how a yo-yo plays too.[54][5]

Part 4

How Yo-Yos Are Made

Hand-carved to factory-turned wood

Pedro Flores began by hand-carving yo-yos in California in the 1920s.[5][6] Early American yo-yos were carved from solid maple. Lumber was kiln-dried so it would not warp, cut to size, and shaped on a lathe against a master pattern, then stained or painted and lacquered.[5]

In 1946 Duncan opened a factory in Luck, Wisconsin.[6] From 1946 to 1965 Luck was the “Yo-Yo Capital of the World,” with nearly every family in town turning local hard maple into yo-yos.[18]

Mass production in plastic

Flambeau made Duncan’s plastic yo-yos from 1955 and bought the Duncan name in 1968.[6] The injection-molding line works like this:[5]

  1. Plastic pellets feed into a heated barrel, where a screw pushes them forward as heater bands melt them evenly.
  2. The melted plastic is pushed into a mold holding several discs and shells at once. The mold holds it about 17 seconds while water-cooled tubes chill it.
  3. A separate machine cuts metal rod into axles.
  4. Workers snap each disc and shell together while still warm to form a half.
  5. A hot stamper presses the logo onto each half.
  6. Workers set an axle between two halves, and an air press locks them together with a metal plate that sets the exact gap.
  7. String is measured, looped on the axle, cut, tied, twisted, and wound on.
  8. Yo-yos are shrink-wrapped onto skin cards for store racks.

Modern metal yo-yos: CNC lathes

Metal yo-yos are cut from bar stock on computer-controlled (CNC) lathes. In Tormach’s published aluminum yo-yo project, the parts are designed in Fusion 360 CAD/CAM and cut from 2.5-inch 6061 aluminum round in two setups: turning the outside, drilling and tapping an M4 hole for the axle, boring out the inside, and grooving the final profile. Response pads, a bearing, and the threaded axle finish the build.[17] Aluminum yo-yos are then finished by anodizing, blasting, polishing, or plating.[12]

Part 5

Patents and Trademarks

A patent protects an invention: how something works. A trademark protects a name or brand. The yo-yo has a famous story about both. Patents are public, so anyone can read them free on Google Patents.

Selected granted U.S. yo-yo patents
PatentWhat it covers
US 59,745 (1866)James L. Haven and Charles Hettrick of Cincinnati: an improved “bandelore” of two metal discs. Guinness lists it as the earliest known yo-yo patent.[19][20]
US 4,207,701 (1980)Tom Kuhn’s take-apart yo-yo with reversible halves: assemble it as a looper or a butterfly, adjust the gap, and replace the wooden axle.[21]
US 4,332,102 (1982)“Superior performance yo-yo” with a centrifugal clutch.[22]
US 5,100,361Tom Kuhn’s low-friction bearing axle for longer spins, with string tension controlling when the yo-yo grabs and returns.[23]
US 6,331,132 (2001)A yo-yo with improved string tension control and an adjustable mechanism.[24][6]
US 6,371,824Steve Brown’s freehand (5A) yo-yo, with the string tied to a counterweight instead of a finger, assigned to Duncan’s parent Flambeau.[25]

Filed but never granted

Published patent applications stay public even when they are never granted, so abandoned ideas are still there to read. Google Patents lists 67 U.S. yo-yo applications (class A63H1/30) that were published but not granted as of September 2026; a few are still pending. These are ones marked abandoned:[114]

Selected abandoned U.S. yo-yo patent applications
ApplicationFiled byWhat it proposed
US 2001/0001087 A1 (1998)Junji Ichii and Nobuhiro AraiA high-performance yo-yo whose axle detaches from bearing portions in each half.[101]
US 2004/0198151 A1 (2003)Dale BellA yo-yo meant to respond quickly to a tug while still spinning a long time.[102]
US 2005/0287910 A1 (2003)Brendon O’SullivanA bearing member for ball- or roller-bearing yo-yos with extremely wide string gaps for “new school” tricks.[103]
US 2006/0094329 A1 (2004)Hans Van Dan ElzenMulti-piece sides with removable shape disks held by a locking fastener.[104]
US 2007/0026762 A1 (2005)Benjamin McPheeA user-adjustable clutch: set a cam so the yo-yo auto-returns when it slows, or not.[105]
US 2007/0032164 A1 (2005)Yomega Corp. (inventor Ki Chow)A trick yo-yo with an on/off switch for its auto-return.[106]
US 2010/0112894 A1 (2008)Michael O. SmithAn expanding and contracting yo-yo. A later continuation of this idea was granted.[107]
US 2010/0317254 A1 (2009)Hans W. Van Dan Elzen and Benjamin J. McPheeA push-button lock: buttons on each side translate across the yo-yo to lock the spool.[108]
US 2011/0009029 A1 (2009)Hans W. and Thomas J. Van Dan ElzenShuttles on a cam that snap between set points to change responsiveness quickly.[109]
US 2012/0244780 A1 (2011)Hans W. and Thomas J. Van Dan ElzenSwitch between a looper and a butterfly shape without taking the yo-yo apart.[110]
US 2013/0045658 A1 (2011)Yomega Corp.A customizable system of yo-yos that swap parts to build a set.[111]
US 2013/0165015 A1 (2011)NSK Ltd.A bearing unit that keeps a yo-yo precisely centered through repeated assembly and disassembly.[112]
US 2016/0184720 A1 (2014)YOYOdrone, LLC (inventor John Taylor Christiansen)A yo-yo with propeller blades in its bodies.[113]
  • Who filed them: Hans Van Dan Elzen (“Yohans”), owner of Playmaxx and YoYoFactory and a former world-record holder, is named on many of these applications, and on many granted patents too.[116][114]
  • Abandoned isn’t always the end. Michael O. Smith’s expanding yo-yo was abandoned once, then a continuation was granted.[107][115]
  • One Drop Side Effects were never patented. Introduced in 2010, they are swappable axle caps in aluminum or brass (spikes, domes, discs, even Lego pegs) that change a yo-yo’s weight and look.[117] Instead of a patent, One Drop let other companies design Side Effect-compatible yo-yos as long as they bought the Side Effects from One Drop; Anti-Yo, Eternal Throw, YoYoCommunity, Toxic Strings, and 3yo3 all did.[118][117]
  • A patent that shaped a style: Duncan held the patent on yo-yos sold packaged with a counterweight from 2000 to 2020.[119][25]

How “yo-yo” lost its trademark

Pedro Flores trademarked the name “yo-yo,” and Donald F. Duncan bought both his company and the name.[9] Duncan defended the trademark hard, forcing rivals to sell “return tops” and “Filipino twirlers.”[5] Then Duncan sued rival Royal Tops. In 1965 a federal appeals court ruled that “yo-yo” had become part of everyday speech, so Duncan could not own it.[26][6] How Products Are Made puts it simply: yo-yo was the name of the toy, like kite or baseball.[5] When a brand name becomes the everyday word for a product, lawyers call it a generic trademark.[27] In Canada, “Yo-yo” was registered as a trademark in 1932 and still is one.[6]

Part 6

Research Papers and Lab Experiments

Physicists and physics teachers use the yo-yo to study rotation. These papers and demos are good starting points for a report or science fair project.

  • Measure a yo-yo with a smartphone. Salinas and colleagues tied a smartphone to a homemade yo-yo, measured its spin with the phone’s gyroscope, checked it with video, and compared the results to theory. The paper was published in The Physics Teacher and is free on arXiv.[61] The free phyphox app reads your phone’s sensors for experiments like this.[78]
  • 3D print a moment-of-inertia lab. Hazlett and Aragoneses built a 3D-printed wheel whose moment of inertia can change while its mass stays the same, to explore torque and rotational energy.[62]
  • Phones as physics labs. A guide to published experiments using the sensors in phones and tablets, from mechanics to astronomy.[63] Another classroom study used phone gyroscopes to model rotation.[64]
  • Lecture demonstrations. UC Santa Barbara’s yo-yo-down-an-incline demo includes full worked equations.[2] Harvard’s lecture demonstration program has a yo-yo demo too.[66]
  • A real data study, and what it teaches. One player ran a hypothesis test on whether bearing shape changes spin time. Other players pointed out that throws varied from about 40 to 100 seconds and the sample was small, so the result was hard to trust. That is a great lesson in experimental design: control your variables and repeat your trials.[59]
Part 7

Yo-Yos in Space Engineering

Some rockets spin a satellite to keep it steady while an engine fires. Afterward, the spacecraft needs to slow down. Engineers use a yo-yo de-spin: two cables with weights wrapped around the spacecraft. When released, the weights swing outward and carry away angular momentum, slowing the spin.[68][70]

NASA’s Dawn spacecraft used about 3 kilograms of weights on 12-meter cables to cut its spin from 46 RPM to 3 RPM in the opposite direction. Small weights have a big effect because they are far from the spin axis. The mechanism was invented at Caltech’s Jet Propulsion Laboratory.[68] The Institute of Physics has a teaching page on yo-yo satellites.[67]

DC Connection J. V. Fedor’s 1961 NASA technical note, “Theory and Design Curves for a Yo-Yo De-Spin Mechanism for Satellites,” came from NASA’s Goddard Space Flight Center in Greenbelt, Maryland. It is free to read online.[69]

A yo-yo also flew on Space Shuttle Discovery in 1985. See The Story of the Yo-Yo.

Part 8

Make Your Own

You can 3D print a working yo-yo. Pick the path that fits your time and tools. Always check each model’s license before you share or sell a print.

Once it spins, keep it spinning: our Gear & Maintenance page covers bearings, string, response pads, and lube.

Quick and cheap

Print two halves and join them with a bolt. No bearing needed.

Real bearing yo-yo

Add a C-size bearing for long spins and binds.

  • bearing yoyo: a weighted design for a C-size bearing.[31]
  • Fluid Print Dynamics, started in 2014 by designer Jeffrey Pang: free-to-download models built around a brass spacer kit. The spacers fit C-size bearings and 19 mm response pads, and the kit includes a 20 mm axle and two acorn nuts. It is aimed at school projects and hobbyists.[35]
  • The YoYoMaker kit sells the metal “axis” parts for 3D printed yo-yos.[39]

Design your own

Change the shape, see how the moment of inertia changes, and test it.

Browse more models on Printables, Thingiverse, and MakerWorld.[28][33][34]

Tips from builders

  • Print at 100% infill, or close to it, for weight.[36]
  • You can print the bearing seat into the body instead of adding metal seats. Join halves with a bolt system; a screw threaded straight into plastic may strip.[36]
  • Builders advise a nut-and-bolt axle over metal-style axle systems on plastic yo-yos.[37]
  • For more rim weight, one builder designed hollow sections and pressed steel rings into the rims.[37]
  • Centering everything is the hard part, especially in simple tools like Tinkercad, so compare notes with other builders.[38]
  • The CNC build above lists the same parts you’ll need for a bearing yo-yo: response pads, a bearing, a threaded axle, and string.[17]

Bring your printed yo-yo to a DMV Throwers meetup to test it and get tips. Our Arlington meetups are in the same library as The Shop makerspace.

Part 10

Easy Experiments to Try

Simple, low-cost activities a class can do in the days before a yo-yo demo. All you need is a yo-yo, some string, and a clear space.

Safety First

Throw only in an open area with no hazards or people nearby, and make sure the string is the right length for each student.[88] Science Buddies suggests a string that reaches from the ground to your belly button, and keeping yo-yos away from breakable things.[1]

  1. The yo-yo pendulum

    Hold the string about a foot above the yo-yo and gently swing it side to side. The time for one full swing, left to right and back, is called the period. Now hold the string farther from the yo-yo, then closer. What changes? This is the pendulum experiment in the Scouts’ official Yo-Yo Adventure.[88][87]

    Go further: The American Physical Society’s “Swinging Yo-Yo” activity has students design their own test. Change the yo-yo’s mass with play dough, or change the string length, then collect data and graph it.[89] TeachEngineering has a pendulum activity for older students.[91]

  2. How long can it sleep?

    Time how long a yo-yo sleeps with three different string lengths, three throws each, and plot the results on a scatter plot. This is Science Buddies’ step-by-step project.[1]

  3. Ball vs. yo-yo drop race

    Drop a ball and let a yo-yo unwind from the same height. Which reaches the bottom first? Some of the yo-yo’s energy goes into spinning, so less goes into falling.[1][2]

  4. The spool puzzle

    Pull a yo-yo’s string along a table from the bottom of the axle and predict which way it rolls. The answer comes down to torque.[65]

  5. Spin like a skater

    TeachEngineering’s middle school lesson uses figure skaters and spinning objects to show how moving mass in or out changes spin, the same idea as rim weight.[90]

  6. Measure spin with a phone

    For older students: the free phyphox app reads a phone’s gyroscope, the same approach researchers used to measure a yo-yo’s spin.[78][61]

  7. Predict a yo-yo in space

    Before you look it up, have students predict how a yo-yo would act without gravity. Then read the Air and Space Museum’s story of the toys that flew on Space Shuttle Discovery in 1985.[100]

Part 11

For Classrooms and Reports

Try an experiment

Science Buddies has a free, step-by-step project that tests how string length changes sleep time, using three yo-yos, a stopwatch, and a scatter plot. It suggests follow-ups too, like testing a yo-yo with a centrifugal clutch.[1]

Report and discussion starters

  • Why does moving weight to the rim make a yo-yo spin longer? Use I = ½ M R2 and the energy equation above.
  • Where does a yo-yo’s energy go? Compare its translational and rotational kinetic energy.
  • Compare wood, plastic, and aluminum yo-yos. Which would you choose, and why?
  • How did the 1965 court case change who could use the word “yo-yo”?
  • Read one patent in the table. What problem was the inventor solving?
  • Design and print a yo-yo. Change one variable, like rim weight or gap, and measure sleep time.
  • Predict which way the spool puzzle rolls, then test it. Explain the result with torque.
  • How do weights on cables slow a spinning satellite? Connect it to angular momentum.
  • Read the bearing-shape data study. How would you design a fairer experiment?

Bring the science to your school

“Science of Spin” school assemblies, developed by 1992 World Yo-Yo Champion Dale Oliver, teach friction, gravity, potential and kinetic energy, and distribution of mass with spinning toys, then run hands-on yo-yo clinics.[85] Locally, Springfield, VA performer Dick Stohr has taught the Spintastics Science of Spin program in schools and libraries.[86] DMV Throwers also visits schools and libraries. Contact us to plan a demo.

Across the curriculum

  • Social studies: the modern yo-yo came to America with Filipino immigrants. October is Filipino American History Month, a good time to read our Filipino Yo-Yo History page.[94]
  • History: trace the toy from ancient Greece to today on The Story of the Yo-Yo. National Yo-Yo Day is June 6, Donald Duncan’s birthday.[98]
  • Math and data: average repeated trials, make scatter plots, and discuss what makes an experiment fair.[1][59]
  • PE and coordination: yo-yo skills build eye-hand coordination, one of the Scouts’ stated takeaways.[88]
  • Engineering and art: design and 3D print a yo-yo using the engineering design process.[84] See Make Your Own.
  • Reading: find yo-yo history, trick, and story books on our Books to Find list.

Programs and field trips

  • Scouting America’s Yo-Yo Adventure covers yo-yo safety, stringing, the pendulum experiment, and basic tricks.[87][88] Duncan helped create it and also runs a school program with a science class activity on gravity, friction, rotational inertia, and energy transfer.[92][93]
  • In DC: the Smithsonian’s National Air and Space Museum.[95] The National Museum of American History holds the Duncan Family Yo-Yo Collection archives.[99]
  • Farther away: The Strong National Museum of Play in Rochester, NY, home of the National Toy Hall of Fame, and the National Yo-Yo Museum in Chico, CA.[96][97]

How to cite this page

MLA: “Yo-Yo Science & DIY.” DMV Throwers, dmvthrowers.club/yoyo-science.html. Accessed [date].
APA: DMV Throwers. (2026). Yo-yo science & DIY. https://dmvthrowers.club/yoyo-science.html

For a stronger report, cite the original sources below too. For history, see The Story of the Yo-Yo and Filipino Yo-Yo History.

Part 12

Explore Related Topics

Want to go further? These free resources cover the big ideas behind the yo-yo.

Learn the concepts

Play with simulations

Look up key terms

References

  1. Science Buddies. “How Long Will My Sleepy Yo-yo Sleep?” Physics science fair project. www.sciencebuddies.org/science-fair-projects/project-ideas/Phys_p069/p…
  2. UC Santa Barbara Physics Lecture Demonstrations. “28.36 – Yo-yo down incline.” web.physics.ucsb.edu/~lecturedemonstrations/Composer/Pages/28.36.html
  3. LibreTexts Physics. “11.2: Rolling Motion.” University physics textbook chapter. phys.libretexts.org/Workbench/PH_245_Textbook_V2/11:__Angular_Momentum…
  4. Woodford, Chris. “How do yo-yos work?” Explain That Stuff. www.explainthatstuff.com/yoyos.html
  5. “Yo-yo.” How Products Are Made, Volume 3. The Gale Group, via madehow.com. www.madehow.com/Volume-3/Yo-yo.html
  6. “Yo-yo.” Wikipedia. en.wikipedia.org/wiki/Yo-yo
  7. “Moment of inertia.” Wikipedia. en.wikipedia.org/wiki/Moment_of_inertia
  8. “Angular momentum.” Wikipedia. en.wikipedia.org/wiki/Angular_momentum
  9. The Strong National Museum of Play. “Out of this World: A Brief History of the Yo-Yo.” www.museumofplay.org/blog/out-of-this-world-a-brief-history-of-the-yo-…
  10. YoYo Wiki. “Shapes.” yoyo.fandom.com/wiki/Shapes
  11. YoYo Wiki. “Rim Weight.” yoyo.fandom.com/wiki/Rim_Weight
  12. YoYo Wiki. “Yo-yo Materials.” yoyo.fandom.com/wiki/Yo-yo_Materials
  13. YoYo Wiki. “Ball Bearings.” yoyo.fandom.com/wiki/Ball_Bearings
  14. YoYoExpert Forums. “Common Yoyo Bearing Sizes” (2014). forums.yoyoexpert.com/t/common-yoyo-bearing-sizes/66653
  15. Skill Addicts. “Yoyo Shapes.” skilladdicts.com/yoyo-shapes/
  16. Yo-Yo Store Rewind. “Shape.” YoYo Info Base. yoyorewind.com/en/yo-yo-knowledge/extra-knowledge/shape/
  17. Tormach. “Aluminum Yo-Yo CNC Project.” tormach.com/aluminum-yo-yo
  18. Village of Luck, Wisconsin. History of Luck. luckwisconsin.com/?DE=DF4F6484-2D85-4931-ACBF-C58D156E0B47&SEC=23AC97F…
  19. U.S. Patent 59,745. Haven, James L., and Charles Hettrick. Bandelore toy (1866). Google Patents. patents.google.com/patent/US59745A/en
  20. Guinness World Records. “Earliest patent for a yo-yo.” www.guinnessworldrecords.com/world-records/429341-earliest-patent-for-…
  21. U.S. Patent 4,207,701. Kuhn, Thomas R. Dismantlable tethered top with reversible halves. Google Patents. patents.google.com/patent/US4207701A/en
  22. U.S. Patent 4,332,102. “Superior performance yo-yo” (centrifugal clutch). Google Patents. patents.google.com/patent/US4332102A/en
  23. U.S. Patent 5,100,361. Kuhn, Thomas R. “Tethered aerial top.” Google Patents. patents.google.com/patent/US5100361A/en
  24. U.S. Patent 6,331,132. “Yo-yo having improved tether tension control and adjustable mechanism.” Google Patents. patents.google.com/patent/US6331132B1/en
  25. U.S. Patent 6,371,824. Brown, Stephen D. (assignor to Flambeau Products Corp.). “Yo-yo and method for using a yo-yo.” Google Patents. patents.google.com/patent/US6371824B1/en
  26. Donald F. Duncan, Inc. v. Royal Tops Manufacturing Co., 343 F.2d 655 (7th Cir. 1965). Justia. law.justia.com/cases/federal/appellate-courts/F2/343/655/109434/
  27. “Generic trademark.” Wikipedia. en.wikipedia.org/wiki/Generic_trademark
  28. Printables. Models tagged “yoyo.” www.printables.com/tag/yoyo
  29. Printables. “Easy to print fully working YoYo.” www.printables.com/model/134188-easy-to-print-fully-working-yoyo
  30. Printables. “DIY 3D-Printed Fixed Axle Yo-Yo for Kids with Customizable Weight.” www.printables.com/model/633063-diy-3d-printed-fixed-axle-yo-yo-for-ki…
  31. Printables. “bearing yoyo (yo-yo).” www.printables.com/model/729744-bearing-yoyo-yo-yo
  32. MtDon. “Parametric Yo-Yo” (OpenSCAD). Thingiverse. www.thingiverse.com/thing:37771
  33. Thingiverse. Things tagged “yoyo.” www.thingiverse.com/tag:yoyo
  34. MakerWorld. Yo-yo 3D print models. makerworld.com/en/more-models/yoyo-3d-print-model-download
  35. YoYoExpert. “Fluid Print Dynamics 3D printing Spacer Kits!” (2021). forums.yoyoexpert.com/t/fluid-print-dynamics-3d-printing-spacer-kits/3…
  36. YoYoExpert Forums. “Tips On 3D Printing a Yo-yo?” (2024). forums.yoyoexpert.com/t/tips-on-3d-printing-a-yo-yo/391630
  37. YoYoExpert Forums. “3D printed yoyo design” (2016). forums.yoyoexpert.com/t/3d-printed-yoyo-design/79420
  38. YoYoExpert Forums. “Show us your 3d printed yoyos!” forums.yoyoexpert.com/t/show-us-your-3d-printed-yoyos/371438
  39. Yo-Yo Store Rewind. “YoYoMaker 3D Printed Yoyo Axis Parts.” en.yoyostorerewind.com/products/yoyomaker-making-kit
  40. Tinkercad (free browser-based 3D design). www.tinkercad.com/
  41. OpenSCAD (free script-based 3D CAD). openscad.org/
  42. Arlington Public Library. “The Shop.” library.arlingtonva.us/for-makers-and-crafters/the-shop/
  43. Arlington Public Library. “3D Design and Printing” (The Shop policies). library.arlingtonva.libguides.com/theshop/3DPrinting
  44. DC Public Library. “Maker Space and Machinery (Fabrication Lab).” www.dclibrary.org/using-the-library/maker-space-and-machinery-fabricat…
  45. DC Public Library. “The Labs” at Martin Luther King Jr. Memorial Library. www.dclibrary.org/plan-visit/martin-luther-king-jr-memorial-library/la…
  46. Fairfax County Public Library. “Maker Labs @ FCPL.” research.fairfaxcounty.gov/c.php?g=1106963&p=8070798
  47. Loudoun County Public Library. “Makerspace.” library.loudoun.gov/makerspace
  48. Prince William Public Libraries. “Makerspace.” www.pwcva.gov/department/library/makerspace
  49. Nova Labs makerspace, Fairfax, VA. nova-labs.org/
  50. HacDC, The Capital Hackerspace, Washington, DC. www.hacdc.org/
  51. YoYo Wiki. “Response System.” yoyo.fandom.com/wiki/Response_System
  52. YoYo Wiki. “Halves.” yoyo.fandom.com/wiki/Halves
  53. YoYo Wiki. “Weight Rings.” yoyo.fandom.com/wiki/Weight_Rings
  54. YoYo Wiki. “String.” yoyo.fandom.com/wiki/String
  55. YoYo Wiki. “Don Watson.” yoyo.fandom.com/wiki/Don_Watson
  56. Watson, Donald W. (“Captain Yo”). Yo-Yo Physics, Vols. 1–5. Pencil Point Press. Internet Archive. archive.org/details/Don_Watson_YoYo_Physics1-5
  57. Philip. “The physics behind spin times, speediness, and float.” YoYoExpert Forums (2023). forums.yoyoexpert.com/t/the-physics-behind-spin-times-speediness-and-f…
  58. YoYoExpert Forums. “Rim weight physics” (2024). forums.yoyoexpert.com/t/rim-weight-physics/405429
  59. Hudakjoe. “Statistical Analysis of Impact of Bearing Shape on Spin Times.” YoYoExpert Forums (2016). forums.yoyoexpert.com/t/statistical-analysis-of-impact-of-bearing-shap…
  60. Miller, Julius Sumner. “Lesson 12 – The Strange Behavior of Rolling Things.” YouTube. www.youtube.com/watch?v=9e9ysnJA9qA
  61. Salinas, I., Monteiro, M., Marti, A. C., and Monsoriu, J. A. “Dynamics of a yoyo using a smartphone gyroscope sensor.” arXiv:1903.01343; published in The Physics Teacher 58(8), 2020. arxiv.org/abs/1903.01343
  62. Hazlett, E., and Aragoneses, A. “A 3D printed wheel with constant mass and variable moment of inertia for lab and demonstration.” arXiv:1707.00032 (2017). arxiv.org/abs/1707.00032
  63. Monteiro, M., and Marti, A. C. “Mobile Devices and Sensors for Physics Teaching.” arXiv:2206.12062 (2022). arxiv.org/abs/2206.12062
  64. Pörn, R., and Braskén, M. “Interactive modeling activities in the classroom—rotational motion and smartphone gyroscopes.” Physics Education 51(6), 2016. iopscience.iop.org/article/10.1088/0031-9120/51/6/065021
  65. Hewitt, Paul G. “The Pulled Spool—Which Way Does It Roll?” The Science Teacher, NSTA (2020). www.nsta.org/science-teacher/science-teacher-aprilmay-2020/pulled-spoo…
  66. Harvard Natural Sciences Lecture Demonstrations. “Yo-yo.” sciencedemonstrations.fas.harvard.edu/presentations/yo-yo
  67. Institute of Physics, IOPSpark. “Yo-yo satellites.” spark.iop.org/yo-yo-satellites
  68. “Yo-yo de-spin.” Wikipedia. en.wikipedia.org/wiki/Yo-yo_de-spin
  69. Fedor, J. V. “Theory and Design Curves for a Yo-Yo De-Spin Mechanism for Satellites.” NASA Technical Note D-708, Goddard Space Flight Center (1961). Internet Archive (DTIC). archive.org/details/DTIC_AD0260758
  70. “Spin stabilization.” Wikipedia. en.wikipedia.org/wiki/Spin_stabilization
  71. OpenStax. University Physics Volume 1, 10.4 “Moment of Inertia and Rotational Kinetic Energy.” openstax.org/books/university-physics-volume-1/pages/10-4-moment-of-in…
  72. OpenStax. University Physics Volume 1, 11.1 “Rolling Motion.” openstax.org/books/university-physics-volume-1/pages/11-1-rolling-moti…
  73. OpenStax. University Physics Volume 1, 11.2 “Angular Momentum.” openstax.org/books/university-physics-volume-1/pages/11-2-angular-mome…
  74. OpenStax. University Physics Volume 1, 11.3 “Conservation of Angular Momentum.” openstax.org/books/university-physics-volume-1/pages/11-3-conservation…
  75. Khan Academy. “Torque and angular momentum” (high school physics). www.khanacademy.org/science/high-school-physics/torque-and-angular-mom…
  76. PhET Interactive Simulations, University of Colorado Boulder. “Torque.” phet.colorado.edu/en/simulations/torque
  77. PhET Interactive Simulations. “Energy Skate Park: Basics.” phet.colorado.edu/en/simulations/energy-skate-park-basics
  78. phyphox: Physical Phone Experiments (free app, RWTH Aachen University). phyphox.org/
  79. “Gyroscope.” Wikipedia. en.wikipedia.org/wiki/Gyroscope
  80. “Precession.” Wikipedia. en.wikipedia.org/wiki/Precession
  81. “Radius of gyration.” Wikipedia. en.wikipedia.org/wiki/Radius_of_gyration
  82. “Rolling.” Wikipedia. en.wikipedia.org/wiki/Rolling
  83. “Conservation of energy.” Wikipedia. en.wikipedia.org/wiki/Conservation_of_energy
  84. Science Buddies. “The Engineering Design Process.” www.sciencebuddies.org/science-fair-projects/engineering-design-proces…
  85. Science of Spin. School assembly program details. www.scienceofspin.com/science-of-spin-details.html
  86. YoYo Wiki. “Dick Stohr.” yoyo.fandom.com/wiki/Dick_Stohr
  87. Scouting America. “Yo-yo” Cub Scout Adventure. www.scouting.org/cub-scout-adventures/yo-yo/
  88. Scouting America. “Webelos Yo-Yo Adventure” den meeting plan (PDF). www.scouting.org/wp-content/uploads/2019/05/510-77419-Webelos-Yo-Yo-De…
  89. American Physical Society. “Swinging Yo-Yo” activity (2011), listed by Lawrence Hall of Science’s howtosmile.org. www.howtosmile.org/resource/swinging-yo-yo
  90. TeachEngineering. “Ring around the Rosie” lesson on angular momentum (grades 6–8). www.teachengineering.org/lessons/view/cub_mechanics_lesson08
  91. TeachEngineering. “Swinging Pendulum” activity. www.teachengineering.org/activities/cub_energy_lesson03_activity2
  92. Duncan Toys. School and Scout programs. programs.yo-yo.com/
  93. Duncan Toys. “Schools” program. programs.yo-yo.com/schools/
  94. “Filipino American History Month.” Wikipedia. en.wikipedia.org/wiki/Filipino_American_History_Month
  95. Smithsonian’s National Air and Space Museum. airandspace.si.edu/
  96. The Strong National Museum of Play, Rochester, NY. www.museumofplay.org/
  97. National Yo-Yo Museum, Chico, CA. nationalyoyo.org/
  98. “Donald F. Duncan Sr.” Wikipedia. en.wikipedia.org/wiki/Donald_F._Duncan_Sr.
  99. Smithsonian National Museum of American History Archives Center. “Duncan Family Yo-yo Collection” (SOVA). sova.si.edu/record/nmah.ac.0807
  100. Smithsonian’s National Air and Space Museum. “Toys in Space” (Google Arts & Culture). artsandculture.google.com/story/toys-in-space-smithsonian-national-air…
  101. Google Patents. US20010001087A1, “High performance yo-yo” (priority 1998); legal status: abandoned. patents.google.com/patent/US20010001087A1/en
  102. Google Patents. US20040198151A1, “Yo-yo” (priority 2003); legal status: abandoned. patents.google.com/patent/US20040198151A1/en
  103. Google Patents. US20050287910A1, “Yo-yo bearing member” (priority 2003); legal status: abandoned. patents.google.com/patent/US20050287910A1/en
  104. Google Patents. US20060094329A1, “Yo-yo having modifiable side members” (priority 2004); legal status: abandoned. patents.google.com/patent/US20060094329A1/en
  105. Google Patents. US20070026762A1, “Yo-yo having a user-adjustable clutch mechanism” (priority 2005); legal status: abandoned. patents.google.com/patent/US20070026762A1/en
  106. Google Patents. US20070032164A1, “High performance yo-yo with on/off switchable auto-return” (priority 2005); legal status: abandoned. patents.google.com/patent/US20070032164A1/en
  107. Google Patents. US20100112894A1, “Expanding and contracting yo-yo” (priority 2008); legal status: abandoned. patents.google.com/patent/US20100112894A1/en
  108. Google Patents. US20100317254A1, “Yo-yo having a push-button locking mechanism” (priority 2009); legal status: abandoned. patents.google.com/patent/US20100317254A1/en
  109. Google Patents. US20110009029A1, “Yo-yo having quickly-adjustable responsiveness” (priority 2009); legal status: abandoned. patents.google.com/patent/US20110009029A1/en
  110. Google Patents. US20120244780A1, “Yo-yo having a changeable shape” (priority 2011); legal status: abandoned. patents.google.com/patent/US20120244780A1/en
  111. Google Patents. US20130045658A1, “Customizable Yo-Yo System” (priority 2011); legal status: abandoned. patents.google.com/patent/US20130045658A1/en
  112. Google Patents. US20130165015A1, “Bearing unit, yo-yo using the same, ball bearing unit and yo-yo using the same” (priority 2011); legal status: abandoned. patents.google.com/patent/US20130165015A1/en
  113. Google Patents. US20160184720A1, “Yoyo with propeller blades” (priority 2014); legal status: abandoned. patents.google.com/patent/US20160184720A1/en
  114. Google Patents. Search: U.S. publications in CPC A63H1/30 (yo-yos) with status “application” (not granted), retrieved September 2026. patents.google.com/?cpc=A63H1%2F30&country=US&status=APPLICATION
  115. Google Patents. US20120244781A1, “Expanding and contracting yo-yo”; legal status: active (reinstated). patents.google.com/patent/US20120244781A1/en
  116. YoYo Wiki. “Hans Van Dan Elzen.” yoyo.fandom.com/wiki/Hans_Van_Dan_Elzen
  117. YoYo Wiki. “One Drop Side Effects.” yoyo.fandom.com/wiki/One_Drop_Side_Effects
  118. YoYoExpert Forums. “One Drop Side Effects patent” (2014). forums.yoyoexpert.com/t/70641
  119. YoYo Wiki. “Styles Of Play.” yoyo.fandom.com/wiki/Styles_Of_Play
  120. YoYo Wiki. “One Drop Benchmark.” yoyo.fandom.com/wiki/One_Drop_Benchmark
  121. YoYoExpert Forums. “A Beginner’s Guide to Yoyo” (2019). forums.yoyoexpert.com/t/303088
  122. YoYoExpert Forums. “Yoyo shapes” (2024). forums.yoyoexpert.com/t/395937
  123. YoYoExpert Forums. “V, W, O, or H shaped” (2015). forums.yoyoexpert.com/t/74442
  124. YoYoExpert Forums. “Can someone explain organic in yoyo terms?” (2023). forums.yoyoexpert.com/t/376835
  125. YoYoExpert Forums. “Miscellaneous Yoyo Polls” (2019). forums.yoyoexpert.com/t/297739
  126. YoYoExpert Forums. “Is there any technical advantage on making organic shaped yoyos?” (2014). forums.yoyoexpert.com/t/69710
Spot an error or know a better source? Email contact@dmvthrowers.club.

Keep Exploring
